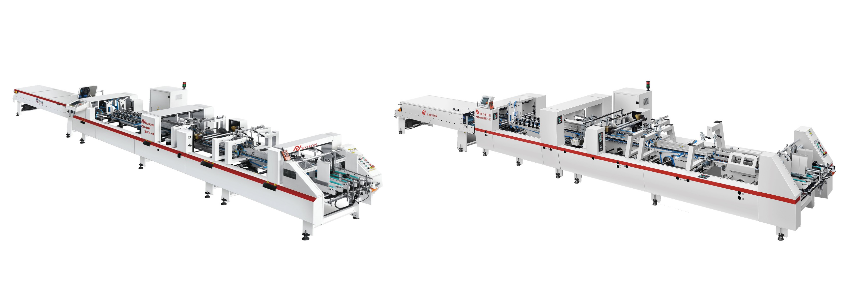

Upgraded Bottom Lock Type Folder Gluer machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180, the third fold at 135. The second fold and the fourth fold box at 180
Technical data
| Model | ZH-880BFT-H |
| Line speed | 0-300m/min , Continuous adjustment |
| Usage paper | 250-600 g/ms, paperboard, |
| Box forming | Bottom-lock, straight line box, double walls box, CD box |
| Fold method | 1st fold at 180°, 3rd folds 135°, 2nd & 4th folds 180° |
| Paper feeding | Automatic feeding, grinding unit |
| Electric Power | 11.5 kw |
| Dimension | 13.5*1.2 *1.4m ( 1×40’ Container) |
| Voltage | 380V / 3Phase |
| Weight | 3800kgs |
| Box Type | Picture | A
Max |
A
Min |
B
Max |
B
Min |
C
Max |
C
Min |
D
Max |
D
Min |
| Crash-lock Bottom Box |  |
520-210mm | 500-180mm | 90mm | |||||
| Straight Line box |  |
580-110mm | 580-70mm | ||||||
| Double Walls Box |  |
500mm | 100mm | 10mm | 100mm | ||||
| CD Type box |  |
500-100mm | 120mm | 10mm | |||||
