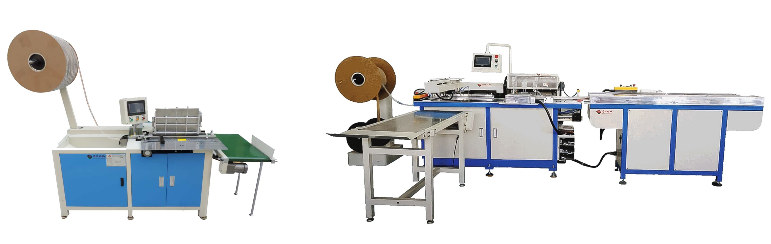

- Semi-automatic Double Loop Wire Binding Machine
- Automatic double loop wire punching and binding machine (เจาะและร้อย)
Monday - Saturday Time 09:00 - 17:00
Monday - Saturday Time 09:00 - 17:00
Technical data
| Semi-automatic Double Loop Wire Binding Machine | |
| Model | HB-520A |
| Wire Specifications | Diameter 1/4” – 7/8” ( Pitch 1:2 , 1:3 ) |
| Max. Paper Width | 520 mm |
| Max. Binding Width | 507 mm |
| Min. Paper Width | 75 mm |
| Working Speed | 1000 – 1600 / hour |
| Size of Worktable (W*D) | 660 x 300 mm |
| Power | 220V / 1ph / 50Hz / 60Hz / 0.2 kw |
| Air Compressor (not included) (kw) | 1.5 kw |
| Air Pressure (bar) | 6 – 8 bar |
| Machine Dimensions (W*D*H) | 1800 x 760 x 1230 mm |
| Net Weight | 250 kg |
| Automatic double loop wire punching and binding machine | |
| Model | HB-520PB |
| Working speed | 800-1500 books/hour |
| Thickness of punch for each time | 1-6 mm |
| Max punching thickness | 13 mm (Special product 15 mm) |
| Max punching times for one book | 5 times |
| Max book size | 510 (punch)*800 mm |
| Min book size | 100(punch)*140 mm
|
| Max book size for feed belt (หากขนาดเกินจากนี้จะต้องวางงานในตำแหน่งที่เจาะเลยไม่ผ่านสายพาน) | 420*420 mm |
| Size of the double loop wire | 1/4″-5/8″ |
| Pitch | 2:1,3:1 |
| Width size of book for binding | 100-510 mm |
| Machine dimension | 4800*2600*1600 mm |
| Packing size | Deliver belt：2040*870*1230mm Main machine：2100*1300*1790mm |
| Machine weight | 2000 kg |
| Power | 220V/50HZ/60HZ/4.5KW |
| Air compressor(not include with machine) | 3 kw |
| Air compressed | 7-8 bar |
