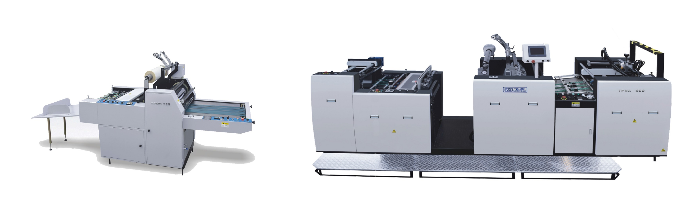

- Semi-Automatic Laminating Machine
- Fully Automatic Laminating Machine Single or Double Face Optional
Monday - Saturday Time 09:00 - 17:00
Monday - Saturday Time 09:00 - 17:00
Technical data
| Model | YFMB750 (Semi-auto) | YFMB950 |
| Max laminating width | 720mm | 920mm |
| Max laminating speed | 0-30m/min | 0-30m/min |
| Laminating temperature | ≤ 130°C | ≤ 130°C |
| Power | 13kw | 15kw |
| Total weight | 1600kg | 1800kg |
| Dimension | 4000 x1500x1600mm | 4200 x1700x1600mm |
| Model | YFMA590 (Fully auto) | YFMA800 |
| Max paper size | 650×40 mm | 760×1020 mm |
| Mi paper size | 240×200 mm | 240×270 mm |
| Paper thickness | 100-500g/m2 | 100-500g/㎡ |
| Laminating speed | 0-80m/min | 0-80m/min |
| Voltage | 380V | 380V |
| Laminating temperature | 80-110°C | 80-110°C |
| Power | 18kw | 25kw |
| Total weight | 2500kg | 3000kg |
| Dimension | 4000x1350x1650mm | 5600x1450x1600mm |
